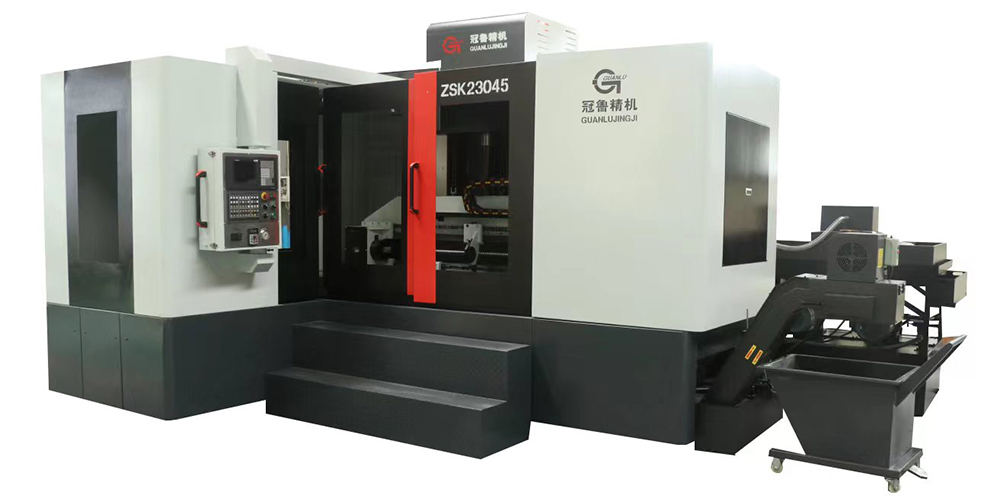

Three Coordinate CNC Gundrilling Machine

Features:

Machine Mainly Parameters:

● The chamber box, machine bed, infeeding slide table, upright column, working table and other basicparts casted by super iron;

● The tool cutter infeeding guide rail adopts roller guide linear rail, others servoaxis adopts slide guiderail or linear guide rail;

● The servo spindle motor drive the tool rotate, the tool rotating speed is stepless;

● The cutter tool infeed adopts servo motor to drive ball screw, so the cutter tool infeeding volume can bestepless controlled;

● Fit the coolant system pressure adjusting knob and flow adjusting panel on the CNC system operation panel; The chips conveyor is in front, convinently to check the chips condition.

Main Parameters of Machine Tool

Technical specification			Parameters
Working capacity	Drilling range (mm)		φ3~φ35
	Max.Drilling length (mm)		1000	1500	2000	2500
Machine character	Z-axis	Infeeding speed range (m/min)	5~500
		Rapid movement speed (m/min)	5
		Infeed motor torque (Nm)	7.5	10
	X-axis	Rapid movement speed (m/min)	3
		Traval stroke (mm)	1000	1500	2000	2500
		Motor torque (Nm)	15	18	22	30
	Y-axis	Rapid movement speed (m/min)	3
		Traval stroke (mm)	1000
		Motor torque (Nm)	15	22
	Drill bar box	Max.speed (r/min)	5000
		Motor power (kW)	7.5
	Working table	Dimension(XxZ, m)	1.5×1	1.8×1.2	2.2×1.5	3×2
		Working table loading capacity (t)	6	8	10
	Coolant system	Max.pressure (MPa)	10
		Max.flow (L/min)	100
		Filtering accuracy (um)	20
	others	Max.D-L ratio
		Machine general power (kW)	26	27	29
		Machine floor space(LxW, m)	6.3×4.5	7.4×5.8	8.9×7.5
		Machine general weight (t)	14	19	25
