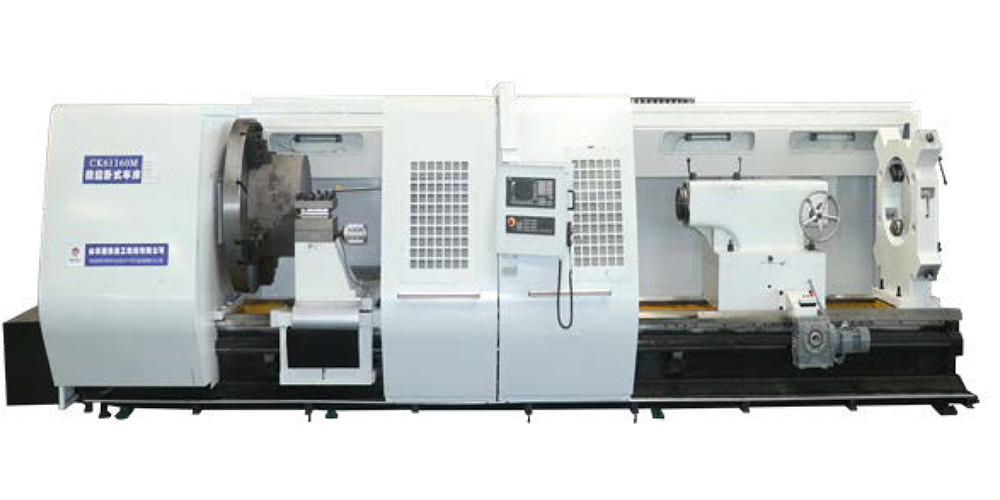

CK611-L Series CNC Large Horizontal Lathe

Features:

CK611- L series machine are large horizontal flat bed CNC lathes, adopt SIEMENS or FANUC CNC system, and full digital AC servo system. The main drive for turning is automatic four-speed stepless speed change, the main motor is an AC spindle motor, and two linkage control axes are used. The Z-axis and X-axis of the machine with a center distance of 1-5M adopt ball screw pair and AC servo motor to realize longitudinal and lateral movement; the Z-axis of the machine with a center distance of more than 6M adopts a rack and pinion and a grating ruler, and the X-axis adopts a ball screw pair Add AC servo motor to achieve longitudinal and lateral movement, with good positioning and repeat positioning accuracy.

The main components and structure of the machine are optimized and designed, and the stability of the whole machine is excellent. Applicable to energy, chemical industry, light industry, electromechanical, paper-making, automobile industry and other industries. It has the characteristics of high precision, high power, high rigidity and high degree of automation. It is suitable for processing shaft, sleeve and disc parts. Such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end surfaces, grooving, chamfering, threading, etc., the process has strong adaptability, high processing efficiency, simple operation, and comprehensive functions, which can reduce the need for skilled workers. Requirements, it is an ideal machining equipment.

Notice: boring, milling, grinding, drilling functions are optional.

Special Ordered Parts

Item Machine model
CK61100L CK61125L CK61140L
CNC turning and boring function Parts Optional; After adding this functional part, deep hole boring machine processing and deep hole turning processing can be realized.
CNC turning and milling function Parts Optional; After adding this functional part, drilling and simple milling can be realized.
CNC turning and grinding function Parts Optional; After adding this functional part, the abrasive belt grinding of the outer circle can be realized.
Chuck Standard Φ1000mm
Special ordered Parts Φ1250 Φ1400mm
Center Frame Standard Φ70-480mm
Special ordered Parts Φ400-700mm
Turret Standard LDB4-157
Special ordered Parts No, special order is available
Roller Standard No, special order is available
Max. loading capacity of two centers 6T
Machine bed width 755mm
Max.swing diameter over bed 1040mm 1290mm 1440mm
Max.swing diameter over turret 630mm 880mm 1030mm
Max.workpiece Length 1000-16000mm(More than 6m is driven by rack and pinion)
Headstock Parameters
Spindle front bearing diameter 200mm
Spindle bore diameter Φ130mm
Spindle taper Metric 140#
Spindle speed series Hydraulic four gear, stepless speed regulation within gear
Spindle rotary speed range 5-500r/Min
Main motor power 37kW
Infeed system parameters
SIEMENS CNC control system
Longitudinal servo motor torque 30N.M
Transverse servo motor torque 28N.M
FANUC CNC system
Longitudinal servo motor torque 30N.M
Transverse servo motor torque 22N.M
Cutter bar cross section 40×40
Turret workstation quantity Vertical type 4 station
Cutter disc repeated positioning accuracy 0.01mm
Longitudinal rapid feed rate 4000mm/min
Transverse rapid feed rate 4000mm/min
Longitudinal feed speed 1-2000mm/min
Transverse Infeed speed 1-2000mm/min
Tailstock parameters
Tailstock sleeve diameter 160mm
Tailstock sleeve taper Morse 6#
Tailstock sleeve stroke 300mm
